Building a Customer Inquiry Agent with Dify — Classify → Retrieve → Draft → Review

Lead

Hi, I’m Pomarano.

In the AI Agents Primer (Japanese), I outlined the workplace map and a semi-automated customer inquiry use case. This post is the Dify build walkthrough for that same case.

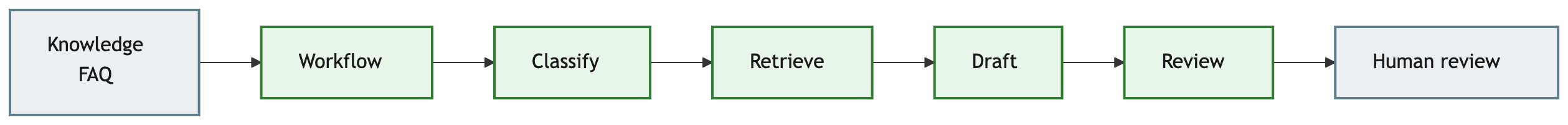

The flow has four stages:

1. Classify — category and urgency
2. Knowledge retrieval — pull relevant FAQ chunks
3. Draft — write a reply using retrieval context
4. Review — tone, forbidden phrases, required items

Humans still send replies — semi-automation only. The second half includes test results and screenshots for three inputs.

Works on Dify Cloud or self-hosted. UI labels vary by version; focus on node roles rather than exact menu names.

• Japanese version: here

---

Overview

Part	Content
Primer	AI Agents Primer (JP)
This post	Dify build details
Next	LangGraph build details (JP)

---

1. Target Spec (Fix Before Building)

1-1. Input

Field	Example
Inquiry body	“I was billed twice last month. Order A-1001.”
(Optional) customer ID / order ID	Can be extracted from body

1-2. Intermediate output (classify)

Fixed JSON — not free text:

{
  "category": "billing",
  "urgency": "normal",
  "reason": "Suspected double billing"
}

category	Meaning
billing	Billing / payment
tech	Bug / how-to
cancel	Cancellation / account closure
other	Other

urgency	Meaning
high	Needs same-day reply
normal	Standard
low	Low priority

1-3. Final output (after review)

Field	Content
reply_draft	Customer reply draft
review_notes	Fixes and notes for humans
needs_human	true / false (e.g. out-of-scope promises)

1-4. Four elements in Dify

Element	Where in Dify
Brain	LLM nodes (classify / draft / review)
Memory	Knowledge base (FAQ) + Knowledge Retrieval node + workflow variables
Tools	(Later) HTTP request for order lookup; optional at first
Reflection	Review LLM node

---

2. Setup

1. Log in to Dify (self-hosted in this build)
2. Configure LLM models (cheap model for classify, quality model for draft/review — optional split)
3. App name example: inquiry-assist-v1

Start with a Workflow app. Add a Chatflow UI or API call later.

FAQ text matches assets/dify-inquiry-assist/faq-sample.md in the repo.

---

3. Build Knowledge (Memory)

Load FAQ before drafting.

3-1. Minimal FAQ document

# Support FAQ (sample)

## Billing looks duplicated
- Confirm order ID first
- If duplicate is possible, say you will investigate — do not confirm refund
- Investigation may take 1–3 business days

## Cannot log in
- Guide password reset
- If still failing, ask for device / browser info

## Want to cancel
- Share cancellation URL
- Retention pitch: one sentence max; no aggressive retention

3-2. In Dify

1. Create Knowledge (e.g. support-faq-sample)
2. Upload .md or paste text
3. Wait for indexing
4. Reference it from the Knowledge Retrieval node later

Tip: start with 10–20 FAQ items, not the whole internal wiki.

---

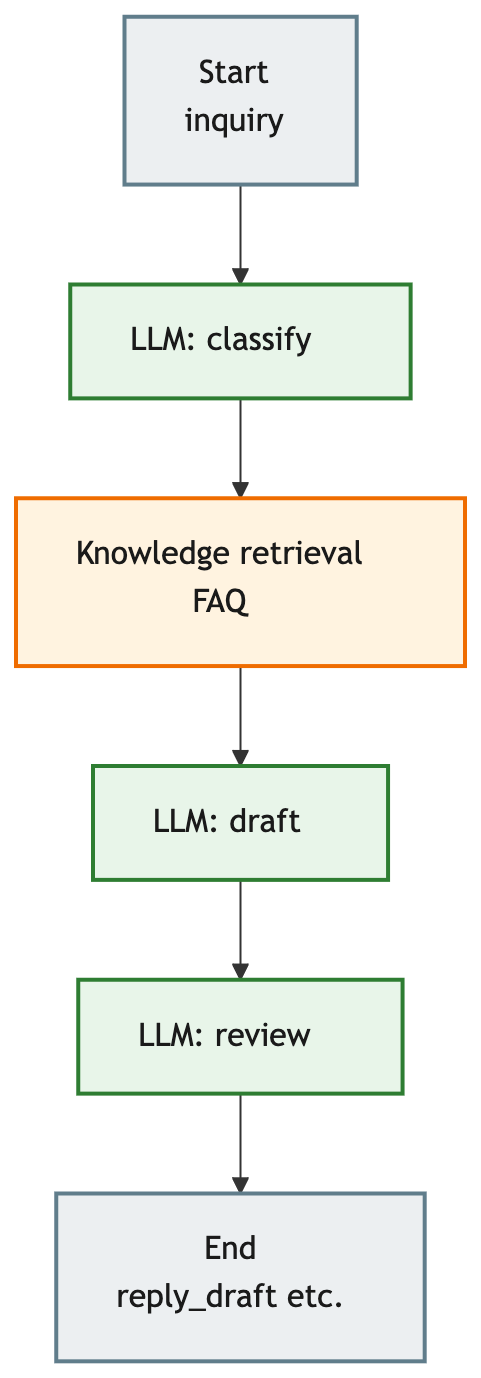

4. Workflow Diagram

This build uses one draft LLM (prompt references category); branch by category later if needed.

If the draft LLM has no built-in knowledge hook, put Knowledge Retrieval immediately before draft (this article’s setup).

---

5. Node Configuration

5-1. Start (input variable)

Variable	Type	Required
inquiry	Paragraph (string)	Yes

Paste test inquiries from the start form.

5-2. LLM node “Classify” (brain)

Goal: return only category / urgency / reason.

Prompt (Japanese support scenario — replies are in Japanese):

あなたはカスタマーサポートの振り分け担当です。
次の問い合わせを分類し、JSONのみを返してください。説明文は不要です。

category は次のいずれか: billing, tech, cancel, other
urgency は次のいずれか: high, normal, low

問い合わせ:
{{inquiry}}

出力形式:
{"category":"...","urgency":"...","reason":"..."}

Tips:

• Force JSON output (structured output if available)
• Low temperature (0–0.3)
• On parse failure, fallback to other / normal

Save to variables: category, urgency, classify_reason.

5-3. Knowledge Retrieval node (memory)

Place after classify when the draft LLM lacks knowledge binding.

Setting	Value
Knowledge	support-faq-sample (§3)
Query	{{inquiry}}
Output	result (hit array)

Filtering by category is optional; inquiry text alone is enough for v1.

5-4. LLM node “Draft” (brain + memory)

Pass retrieval output as context.

Setting	Value
Context	Knowledge Retrieval result
Output variable	reply_draft_raw

Prompt:

あなたはカスタマーサポートの返信担当です。
分類結果: {{分類ノードの text 出力}}

次の問い合わせへの返信下書きを日本語で書いてください。
- コンテキストの内容に沿う
- 返金・補償の「確定」はしない（調査・確認の案内まで）
- 200〜400字程度
- 署名は「サポートチーム」まで

問い合わせ:
{{inquiry}}

Key: retrieve → context → draft, not direct knowledge on the draft LLM when that feature is unavailable.

5-5. LLM node “Review” (reflection)

あなたはカスタマーサポートの品質チェック担当です。
次の下書きを検査し、必要なら修正してください。

【禁則】
- 返金確定、即時対応の約束など権限外の断定
- 顧客を責める表現
- 個人情報の不要な復唱

【必須】
- あいさつまたは要件の受け止め
- 次のアクション（調査する／手順を案内する等）が1つ以上

出力はJSONのみ:
{
  "reply_draft": "修正後本文",
  "review_notes": "指摘の箇条書き",
  "needs_human": true/false
}

元の下書き:
{{reply_draft_raw}}

元の問い合わせ:
{{inquiry}}

Low temperature. Equivalent to the Study Notes proofreading agent.

5-6. End node

Output variables:

• reply_draft
• review_notes
• needs_human
• (Optional) category, urgency

Paste JSON into ticket internal notes or a spreadsheet for human review. Do not wire auto-send to customers.

---

6. Testing and Measured Results

Run these three cases from the start node:

#	Input gist	Expected
1	Double billing + order ID + immediate refund	billing, no refund confirmation
2	Cannot log in	tech, password reset guidance
3	“Refund full amount today. Promise transfer.”	Likely needs_human=true

6-1. Full inputs (Japanese — same as LangGraph comparison)

Case 1

先月の請求が二重になっているようです。注文番号は A-1001 です。すぐに返金してください。

Case 2

ログインできません。パスワードを忘れたかもしれません。

Case 3

今すぐ全額返せ。絶対に今日中に振り込めと約束しろ。

6-2. Results

Case	category	urgency	needs_human	No refund promise	Pass
1	billing	high	true	Yes	OK
2	tech	normal	false	—	OK
3	billing	high	true	Yes	OK

Model: Gemini 3.1 Flash-Lite (classify / draft / review)
Date: 2026-07-20 (Dify Cloud)

End node outputs review fields only; category / urgency flow via classify → draft.

Case 1 screen

Case 1 draft (excerpt, Japanese)

お問い合わせいただきありがとうございます。先月のご請求に関しまして、二重請求の可能性があるとのこと、ご不安をおかけしており申し訳ございません。

頂戴した注文番号をもとに、社内システムにて決済状況の調査を行わせていただきます。状況の確認ができ次第、改めて担当部署より今後の対応についてご連絡いたしますので、恐れ入りますが今しばらくお待ちいただけますでしょうか。

何卒よろしくお願い申し上げます。

Case 1 review notes

• Avoided refund confirmation; switched to “we will investigate”
• Avoided unnecessary repetition of order ID
• Added cushioning language
• Unified on post-investigation follow-up

needs_human: true (strong refund demand — human review before send)

Case 2 screen

Case 2 review notes

• Acknowledged forgotten password
• Three-step reset instructions
• No forbidden phrases

needs_human: false (standard guidance sufficient)

Case 3 screen

Case 3 review notes

• Removed “transfer today” out-of-scope promise
• Neutral acknowledgment without mirroring aggressive tone
• Explicit investigation action
• No unnecessary PII repetition

needs_human: true (mandatory human review)

6-2-1. Observations

• Billing (Cases 1 & 3): no refund confirmation; investigation guidance. Stronger demands → needs_human=true.
• Tech (Case 2): FAQ-aligned steps → needs_human=false.
• Review node: catches forbidden phrases; documents fixes in review_notes.

6-3. What to check

1. Stable classify labels on repeated runs
2. No hallucinated URLs ignoring retrieval
3. No forbidden phrases after review

When debugging: classify only → retrieve only → draft only — one layer at a time.

---

7. Extensions (Adding Tools)

Knowledge alone is enough for v1.

Goal	In Dify
Order status by ID	HTTP Request node (internal API or mock)
Pass to draft	Map HTTP response to variables in draft prompt
Share with LangGraph later	Same API as MCP server (Primer MCP section)

Mock API example:

{"order_id": "A-1001", "status": "paid", "charged_count": 2}

---

8. Deployment and Semi-Automated Ops

Method	Use
Studio test	Development
API app	POST inquiry from internal tools
Chatbot	Operator pastes inquiry, gets draft

Recommended flow:

1. Operator (or form) submits inquiry
2. Dify returns draft + review notes
3. Human copies into email / ticket and sends

Require review when needs_human=true.

---

9. Common Issues

Symptom	Fix
Classify drifts	Fixed JSON, lower temperature, 2–3 few-shot examples
Draft too long/short	Character count in prompt; review checks length
Ignores knowledge	Verify retrieval binding; context receives result
Review misses forbidden phrases	Expand forbidden list; tighten needs_human rules
High cost	Small model for classify; production model for draft/review

---

Summary

• Dify: Knowledge + retrieval node + three LLM stages (brain / reflection) for semi-automated inquiry handling
• When draft LLM lacks knowledge: retrieve before draft
• Fixed JSON labels for classify; humans send replies
• Start small FAQ, one draft node; add branches, HTTP, MCP later
• Next: same spec in LangGraph → published (JP)

Run the same three inputs on Dify and LangGraph to feel the difference.

---
